01
Keep people further from exposure
Send the robot ahead to observe public spaces, site perimeters and difficult-to-reach areas while operators assess the scene remotely.
All Products

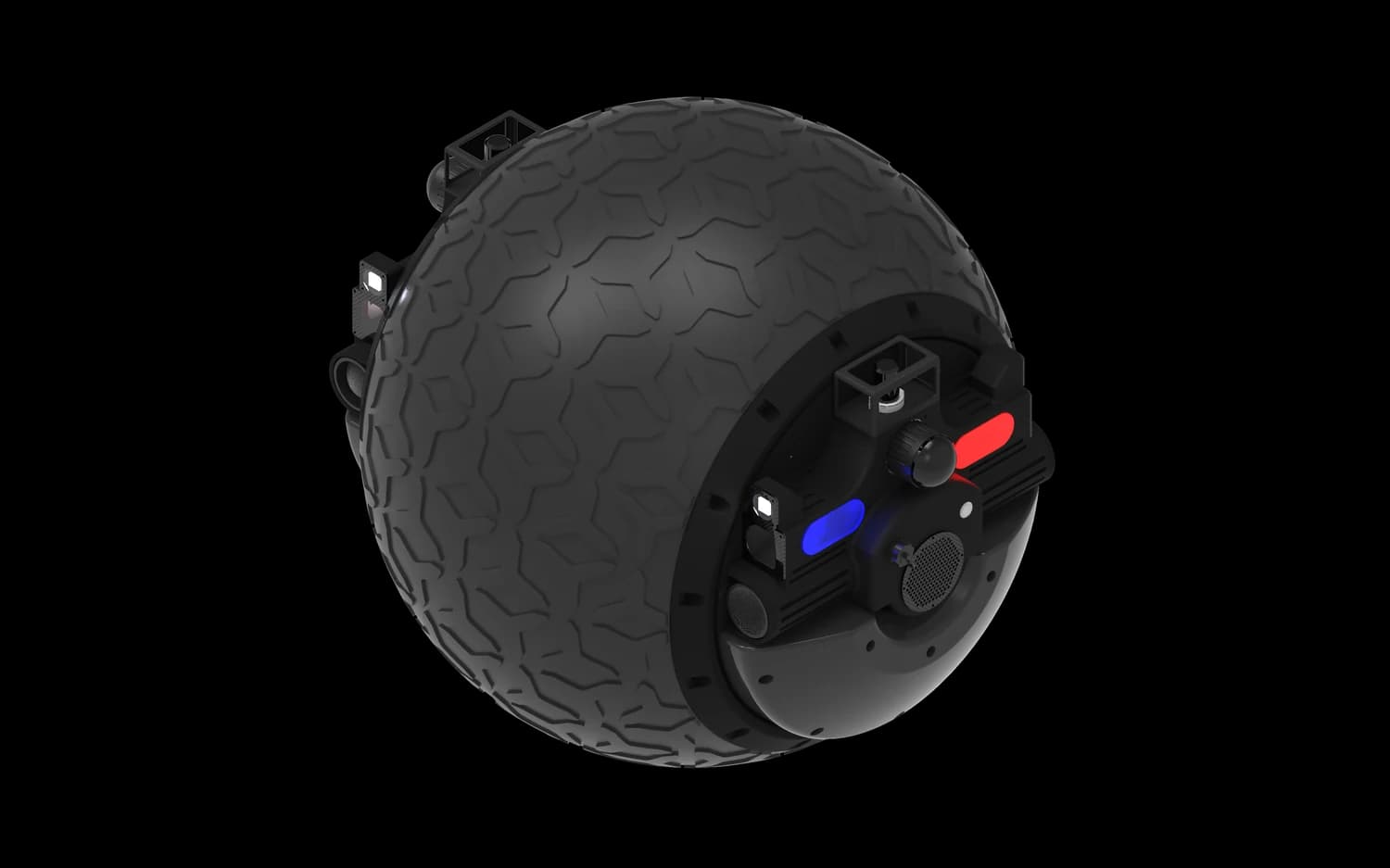

Spherical Mobile Inspection Robot
FORCE 05
Roll closer. Explore from a safe distance.
A spherical robot for inspection and remote observation in demanding environments. Internal pendulum drive and active flywheel stabilization support controlled rolling and on-site sensing.
- Ingress protection
- IP68
- Patrol operating time
- 4 h
- Payload capacity
- 20 kg
See clearly. Act remotely.
02
A form built around rolling
A spherical body with no exposed legs combines internal drive and active stabilization for controlled movement and recovery from disturbances.
03
Carry the sensing the task needs
Configure thermal imaging, gas detection, lighting or a communications relay for inspection and remote assessment.
Key Specifications
- Diameter
- 700 mm
- Base weight
- 110 kg
- Payload capacity
- 20 kg
- Maximum speed
- 10 km/h
- Operating time
- 4 h in patrol / low-speed operation
- Travel range
- 40 km, depending on operating conditions
- Ingress protection
- IP68
- Operating temperature
- −40–60°C
- Maximum slope / obstacle
- 10° on hard surfaces / 50 mm
- Charging time
- 5 h
Range and endurance depend on terrain, speed, payload, temperature and communications. Shallow-water operation requires the corresponding buoyancy and control configuration. Task payloads are selected separately.
Configure for your task
- Optional thermal imaging
- Optional gas detection
- Lighting and voice communication
- Communications relay
Where your presence matters
Public Safety & Site Patrol
Inspect public spaces, perimeters and key locations. Confirm unusual conditions remotely and bring live views back to the team.
Villas & Residential Communities
Check gardens, community roads and underground car parks. Give residents and site teams a way to see the scene remotely.
High-Risk & Hard-to-Reach Areas
Send a robot ahead into low-light, obstructed or difficult-to-access areas to assess conditions before people enter.
Remote & Unattended Sites
Check facility conditions and investigate alerts from a distance, reducing repeated journeys to dispersed sites.
